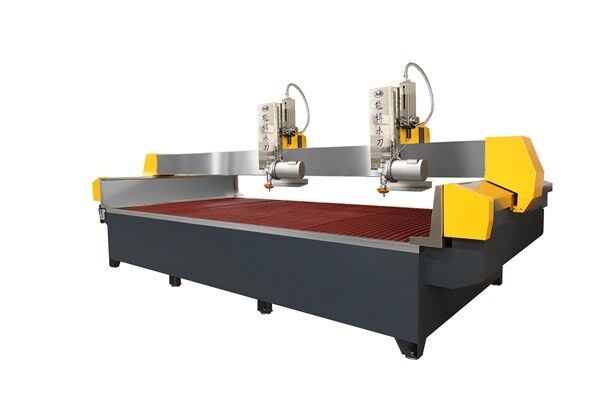

5 Axis CNC Water Jet 350 - 400MPa High Precision Low Noise

Jinzuan Intelligent High-Precision CNC Adaptive Waterjet Equipment with Dynamic Five-Axis Water Cutting System

This advanced waterjet cutting system integrates ultra-high-pressure technology (350-400 MPa) for fast cutting speeds, achieving 10-20% higher efficiency than conventional systems through energy-saving intensifiers. It consumes 17-22 kWh/hour, reducing electricity costs by 30,000-45,000 CNY annually . Featuring precision sand-control, it saves 2-3 bags of garnet abrasives (25kg/bag) every 10 hours, lowering material expenses by 20,000-40,000 CNY yearly. Equipped with 0.33mm gemstone nozzles and intelligent CNC controls, it delivers cold-cutting performance for metals, composites, and ceramics without thermal deformation , ideal for industrial surface treatments and complex 5-axis applications .

1, AC Five-axis cutter head Can be cut at any angle from 0 to 60 degrees. The cutting spindle is equipped with a German

imported scanner. The cutting accuracy error is within ±0.1mm.
2, Pier-style structure
Gantry type oil-immersed structure, imported TBI screw, guide rail, oil-immersed track, dust-proof and waterproof.
3, High-pressure energy-saving ultra-high-pressure pump
Equipped with the high-pressure energy-saving ultra-high pressure booster unit independently developed by our company (by pairing with a 22KW motor, it can achieve a continuous working pressure of ≤ 380MPa, and the maximum pressure can reach 450MPa)
4, Numerical Control System
Equipped with the professional water jet control system from Shanghai Weihong, the equipment is easy to operate and reliable to use. The Weihong professional team provides practical and comprehensive after-sales service.
